漩渦氣泵的葉輪由數十片葉片組成，它類似龐大的氣輪機的葉輪。葉輪葉片中間的空氣受到了離心力的作用，向葉輪的邊緣運動，在那里空氣進入泵體環行空腔，重新從葉片的起點以同樣的方式再進行循環。葉輪旋轉所產生的循環氣流，以極高的能量離開氣泵以供使用。風機采用專用電機，結構緊湊，體積小，重量輕，噪音低，送出氣源無水無油。
機.jpg)
漩渦氣泵工作原理：
漩渦氣泵的葉輪由數十片葉片組成，它類似龐大的氣輪機的葉輪。葉輪葉片中間的空氣受到了離心力的作用，向葉輪的邊緣運動，在那里空氣進入泵體環行空腔，重新從葉片的起點以同樣的方式再進行循環。葉輪旋轉所產生的循環氣流，以極高的能量離開氣泵以供使用。風機采用專用電機，結構緊湊，體積小，重量輕，噪音低，送出氣源無水無油。

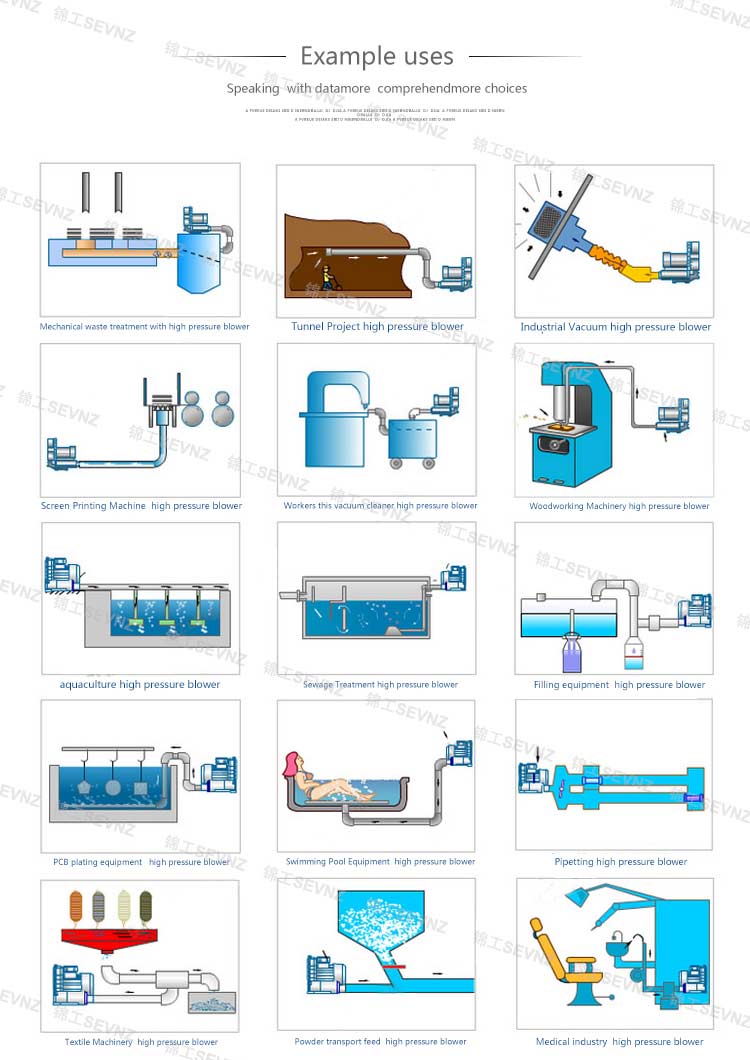

漩渦氣泵的用途：
漩渦氣泵的安裝注意事項：
The impellers in the Regenerative Blowers are mounted directly on the motor shaft for noncontact compression entirely without friction. Maximum operational reliability, even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet ①. As it enters the side channel ②, the rotating impeller ③. Imparts velocity to the gas in the direction of rotation. Centrifugal force in the imp eller blades accelerates the gas outward and the pressure increase. Every rotation adds kinetic energy. Resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and discharging it through the outlet silencer ④ where it exits the side channel blower.
Features of Side Channel Blower (Ring Blower):
1. Beautiful surface;
2. Easy installation;
3. Low noise level;
4. No vibration, and therefore complete dynamic stability;
5. Pulsation-free discharge;
6. Minimal maintenance;
7. Higher pressure ratio;
8. Cooler running bearings;
9. Longer grease life;
10. Simple maintenance;
11. 100%oil-free air;
12. Suitable for environmental protection;
13. Small dimensions;
14. Continuous duty.
